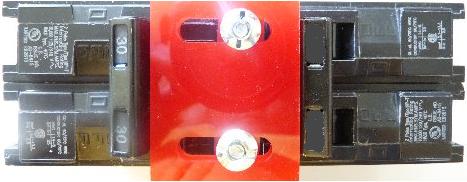

GEN-1 Generator Interlock Kit

this kit fits brands:

 Murray, Siemens, GE, etc.

type of circuit breaker panel:

 any 2 handle horizontal throw main breaker opposite a 2 handle generator breaker with a 1 1/4" to 1 3/4" space between toggles when one is off and the other is on

panel spaces used:

 2 in the opposite breaker column

To order, measure between main and generator toggles (one on and one off) and choose the widest measurement that fits (1st number) the 2nd number is the width of the double breaker
GEN-1 Generator Interlock Kit - (price includes 2-3 day USPS Shipping)$49.00
1 9/16 x 2 Add to Cart
1 7/16 x 2 Add to Cart
1 7/16 x 1 1/2 Add to Cart
1 1/4 x 1 1/2 Add to Cart
National Electrical Code requires a system in place that prevents an emergency generator from feeding back into the utility line. This interlock will only allow the generator breaker to be switched on if the main breaker is off. Or the main breaker to be turned on if the generator breaker is off.

You will also need:
  • A generator with a 240 volt outlet
  • A double breaker located opposite of the main breaker in your electrical panel box
  • An inlet box and wiring connected to that double breaker
Using this interlock will allow you to power your existing house wiring with your generator (within its wattage limits), including 220v circuits such as a well pump.

Please send me an with any questions
Thanks,
Chris
