B-1 Generator Interlock Kit

this kit fits brands:

 Bryant

type of circuit breaker panel:

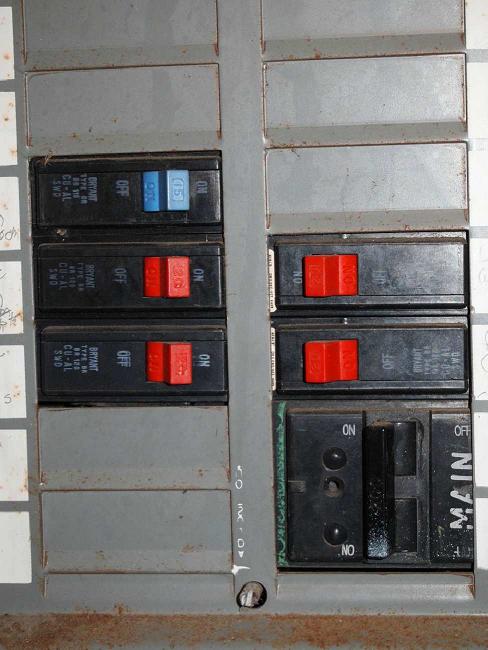

 2 handle horizontal throw Bryant main breaker with the generator breaker directly across from it

panel spaces used:

 2 across from the main breaker

how it works:

 interlock has one end against the main breaker toggle and the other end against the generator breaker toggle allowing only one of them to be on at the same time

B-1 Generator Interlock Kit - (price includes 2-3 day Priority Mail Shipping)
 $39.00
National Electrical Code requires a system in place that prevents an emergency generator from feeding back into the utility line. This interlock will only allow the generator breaker to be switched on if the main breaker is off. Or the main breaker to be turned on if the generator breaker is off.

You will also need:
  • A generator with a 240v 30a or 50a outlet
  • A 30a or 50a double breaker located at the bottom of the left side breaker column of your electrical panel box
  • An inlet box and wiring connected to that double breaker
Using this interlock will allow you to power your existing house wiring with your generator (within its wattage limits), including 220v circuits such as a well pump.

Please send me an with any questions
Thanks,
Chris
