CH-1 Generator Interlock Kit

this kit fits brands:

 Eaton Cutler Hammer

type of circuit breaker panel:

 1 handle horizontal throw left to right main breaker offset to the left over 2 breaker columns with a 1 1/4" space between main breaker and column breakers

panel spaces used:

 2 at the top of the left side breaker column

CH-1 Generator Interlock Kit - (price includes 2-3 day USPS Shipping)
 $69.00 Add to Cart
If the measurement from the bottom of the main breaker toggle to the top of the generator breaker toggle is more than 2 1/16 inch, use the tall version
CH-1 (tall version) Generator Interlock Kit - (price includes 2-3 day USPS Shipping)
 $69.00 Add to Cart

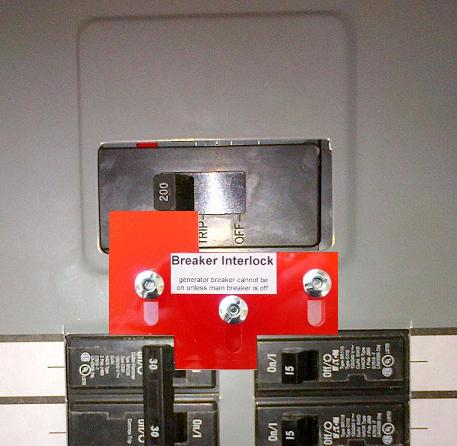

National Electrical Code requires a system in place that prevents an emergency generator feeding back into the utility line. This interlock will only allow the generator breaker to be switched on if the main breaker is off. Or the main breaker to be turned on if the generator breaker is off.

You will also need:
  • A generator with a 240 volt outlet
  • A double breaker located at the top of the left side breaker column of your electrical panel box
  • An inlet box and wiring connected to that double breaker
Using this interlock will allow you to power your existing house wiring with your generator (within its wattage limits), including 240 volt circuits such as a well pump.

Please send me an with any questions
Thanks,
Chris
