CR-1 Generator Interlock Kit

this kit fits brands:

Challenger, Westinghouse, Thomas & Betts

type of circuit breaker panel:

Meter main combination with 2 handle vertical throw main breaker with a 4 1/2" space between main breaker and a single breaker column

panel spaces used:

2 at the top of the breaker column

CR-1 Generator Interlock Kit - (price includes 2-3 day USPS Shipping)
$69.00 Add to Cart

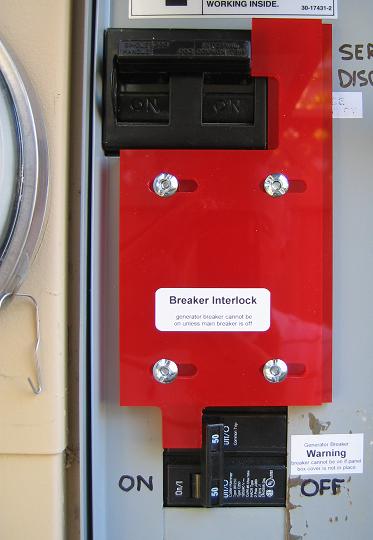

National Electrical Code requires a system in place that prevents an emergency generator feeding back into the utility line. This interlock will only allow the generator breaker to be switched on if the main breaker is off. Or the main breaker to be turned on if the generator breaker is off.

You will also need:
  • A generator with a 240 volt outlet
  • A double breaker located at the top of the breaker column
  • An inlet box and wiring connected to that double breaker
Using this interlock will allow you to power your existing house wiring with your generator (within its wattage limits), including 220v circuits such as a well pump.

Please send me an with any questions
Thanks,
Chris
