M-8 Generator Interlock Kit

this kit fits brands:

 Arrow Hart Murray

type of circuit breaker panel:

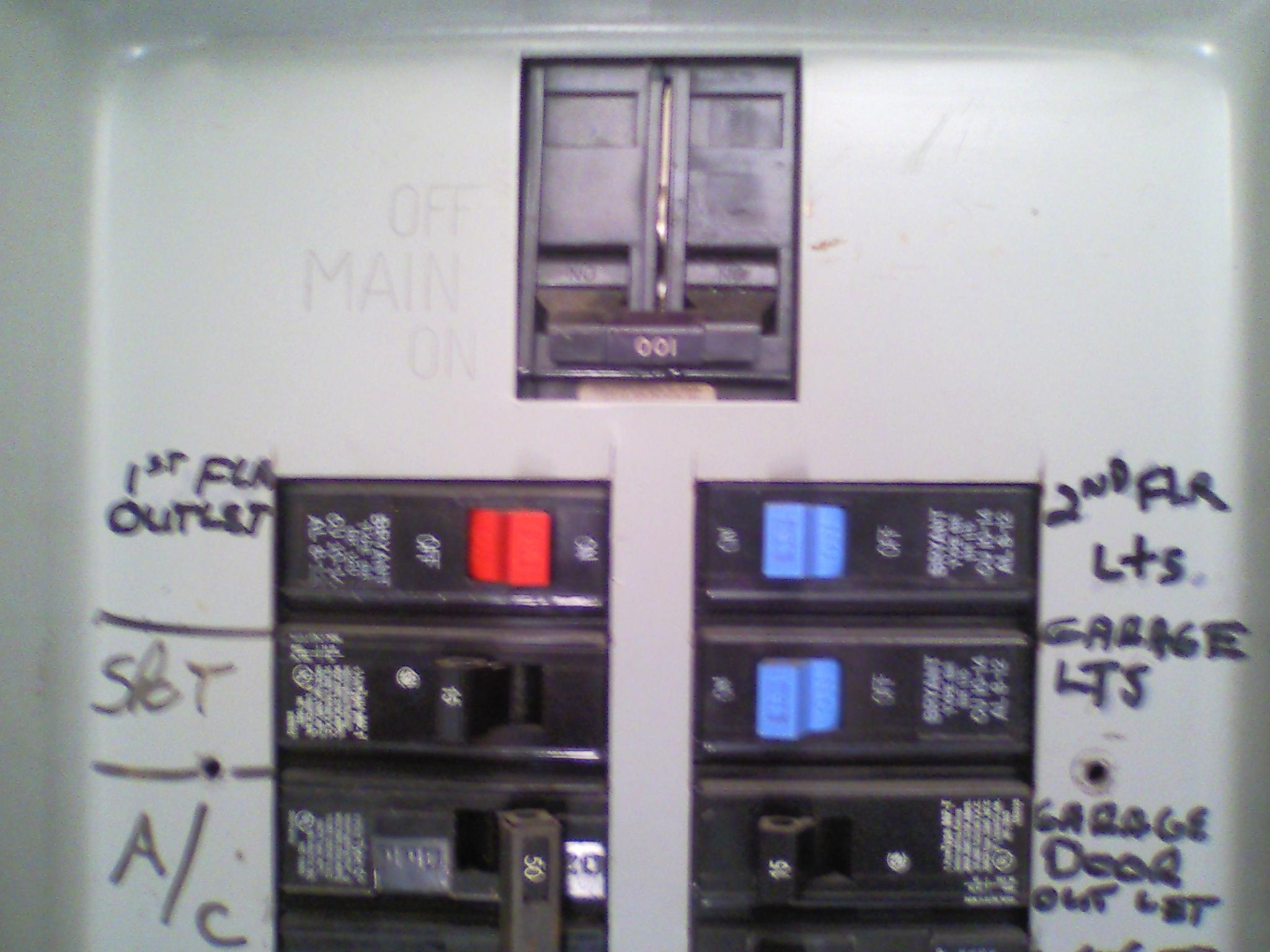

 100 amp vertical throw main breaker centered 1/2" over two breaker columns. Main is ON in the down position.

panel spaces used:

 2 at the top of the right side breaker column

M-8 Generator Interlock Kit - (price includes 2-3 day USPS Shipping)
 $69.00 Add to Cart
National Electrical Code requires a system in place that prevents an emergency generator from feeding back into the utility line. This interlock will only allow the generator breaker to be switched on if the main breaker is off. Or the main breaker to be turned on if the generator breaker is off.

You will also need:
  • A generator with a 240 volt outlet
  • A double breaker located at the top of the right side breaker column of your electrical panel box
  • An inlet box and wiring connected to that double breaker
Using this interlock will allow you to power your existing house wiring with your generator (within its wattage limits), including 220 volt circuits such as a well pump.

Please send me an with any questions
Thanks,
Chris
