Generator Interlock Kit

Use your house wiring with a generator when the electric utility power fails

National Electrical Code requires a system in place that prevents an emergency generator from feeding back into the utility line.

A generator interlock will:


Kits include top and bottom interlock plates, hardware, warning stickers, generator operation instructions, drill bit, generator location sticker, generator breaker hold down strap, and installation instructions.

Generator Breaker Interlocks

for the following electric panels

Panel Brands

B-2
circuit breaker panel with Bryant main
Bryant Main Breaker 2 handle Bryant main breaker with the generator breaker vertically adjacent below or above the main breaker
CH-1
Eaton Cutler Hammer circuit breaker panel br3040b200v5
Cutler Hammer
1 handle horizontal throw right to left main breaker offset to the left over 2 breaker columns with a 1 1/4" space between main breaker and column breakers
CH-3
Eaton Cutler Hammer circuit breaker panel
Cutler Hammer
1 handle horizontal throw right to left main breaker offset to the right over 2 breaker columns with a 1 1/2" space between main breaker and column breakers
CH-5
Eaton Cutler Hammer circuit breaker panel CH40KKM200
Cutler Hammer
1 handle vertical throw main breaker centered over 2 breaker columns with a 2 1/4" space between main breaker and breaker column
CH-7
Eaton Cutler Hammer circuit breaker panel
Cutler Hammer
meter / main combination with 1 handle horizontal throw main breaker centered over 2 breaker columns with a 1 1/4" space between main breaker and breaker columns
CR-1
Challenger circuit breaker panel SMB20
Challenger/Westinghouse/Thomas & Betts meter / main with 2 handle vertical throw main breaker with a 4 1/2" space between main breaker and a single breaker column
CR-2
Challenger circuit breaker panel
Challenger/Westinghouse/Thomas & Betts 200A two handle horizontal throw main breaker offset 7/8" left of center and 1 1/4" above two breaker columns
CR-3
Challenger circuit breaker panel
Challenger/Westinghouse 2 handle vertical throw main breaker centered 3 1/2" above two breaker columns
CR-4
Challenger circuit breaker panel
Challenger/Westinghouse 2 handle horizontal throw main breaker offset 7/8" left of center and 7/8" to 1" above two breaker columns
CRO-1
Challenger circuit breaker panel
Crouse Hinds 2 handle horizontal throw main breaker offset 1/4" right of center and 1/2" above two breaker columns

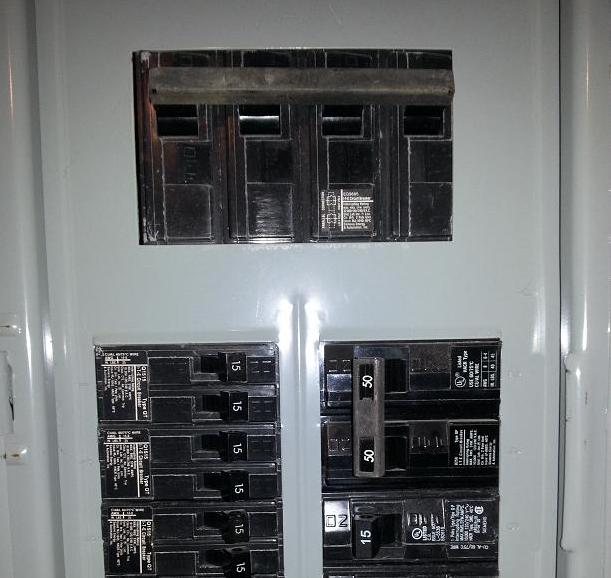

GE-1
GE-1 Generator Interlock Kit
General Electric
4 handle horizontal throw main breaker - offset right of center 5/8"- over 2 breaker columns with a 1 1/4" to 1 5/8" space between main breaker and column breakers
GE-3
GE-3 Generator Interlock Kit
General Electric
1 handle vertical throw main breaker centered 2 1/2" above 2 breaker columns

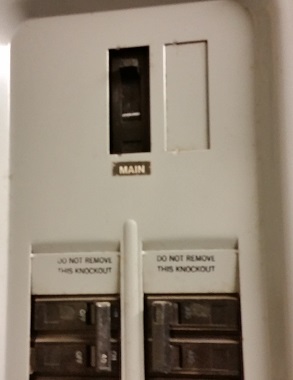

GE-3 LONG
GE-3 LONG Generator Interlock Kit
General Electric
1 handle vertical throw main breaker centered 3 1/2" above 2 breaker columns
GE-4
GE-4 Generator Interlock Kit
General Electric
4 handle vertical throw main breaker centered over 2 columns with a 2 1/4" space between main breaker and column breakers
GE-7
GE-7 Generator Interlock Kit
General Electric
2 handle horizontal throw main breaker - offset right of center 5/8"- over 2 breaker columns with a 1 1/4" to 1 5/8" space between main breaker and column breakers
GE-13
GE-13 Generator Interlock Kit
General Electric
4 handle vertical throw main breaker centered beneath 2 breaker columns with a 2 1/4" space between main breaker and column breakers
GE-25
GE-25
General Electric
1 handle vertical throw main breaker centered 2 1/8" above 2 breaker columns
GEN-1
GEN-1 Generator Interlock Kit
Murray, Siemens, GE, etc.
most any 2 handle horizontal throw main breaker opposite a 2 handle generator breaker with a 1 1/2" to 1 3/4" space between toggles when one is off and the other is on
GEN-2
GEN-2 Generator Interlock Kit
Murray, Siemens, GE, etc.
most any 2 handle horizontal throw main breaker adjacent above or below a 2 handle generator breaker
GEN-3
GEN-3 Generator Interlock Kit
Murray, Siemens, Bryant, etc.
2 handle horizontal throw main breaker with the generator breaker located 2 spaces lower or higher in the opposite column
GS-1
GS-1 Generator Interlock Kit
General Switch
100 amp 2 handle horizontal throw main breaker at the top of the left breaker column
ITE-1
ITE-1 Generator Interlock Kit
ITE - Murray
2 handle vertical throw main breaker centered 1 1/4" above two breaker columns
M-1
M-1 Generator Interlock Kit
Murray - ITE - Siemens
4 handle vertical throw main breaker centered 1 1/4" above 2 breaker columns
M-2
M-2 Generator Interlock Kit
Murray - Crouse Hinds
hump main breaker with horizontal throw on top of the right side breaker column
M-3
Murray Breaker Panel LC236PC
Murray - Crouse Hinds
hump main breaker with horizontal throw on top of the left side breaker column
M-4
Murray Breaker Panel LC130DC
Murray - Siemens
100 amp 2 handle horizontal throw main breaker at the top of the right column
M-6
Murray Breaker Panel LC4040B1200
Murray - Siemens
200 amp 1 handle horizontal throw main breaker positioned 7/8" left of center and 1 1/4" above 2 columns of breakers
M-7
Murray Circuit Breaker Panel
Murray
200 amp 1 handle horizontal throw main breaker positioned at the top of the right column of breakers
M-8
Arrow Hart Murray Circuit Breaker Panel
Arrow Hart Murray
100 amp vertical throw main breaker centered 1/2" over two breaker columns - main is on in the down position
M-8A
Arrow Hart Murray Circuit Breaker Panel
Arrow Hart Murray
100 amp vertical throw main breaker centered 1/2" over two breaker columns - main is on in the UP position
M-9
Murray Circuit Breaker Panel LC3040B1100
Murray
100 amp 2 handle horizontal throw main breaker centered 1 1/4" over two breaker columns
SD-1
Square D Homeline SC3040M200RS
Square D
4 handle horizontal throw main breaker, slightly right of center, over 2 breaker columns with a 2 1/4" to 2 11/16" space between main breaker and column breakers
SD-2
Square D Homeline HOMC42UC
Square D
1 handle horizontal throw left to right main breaker centered over 2 breaker columns with a 1 3/8" space between main breaker and column breakers
SD-3
Square D Homeline QO20M100RB
Square D
1 handle horizontal throw left to right main breaker centered over 2 breaker columns with a 1" space between main breaker and column breakers
SD-4
Square D Homeline QOC40MG225
Square D
1 handle vertical throw main breaker centered over 2 breaker columns with a 3 to 3 1/2 inch space between main breaker and column breakers
SD-5
Square D Homeline QBOW20M100
Square D
100 amp 2 handle horizontal throw main breaker at the top of the right column
SD-9
Square D
Square D
QO main breaker with a QO generator breaker adjacent above or below
SI-1
Siemens circuit breaker panel Homeline MC0408B1200T
Siemens
4 handle vertical throw main breaker centered over 2 breaker columns with a 2 5/8" space between main breaker and 4 column breakers
TB-1
Thomas & Betts Circuit Breaker Panel
Thomas & Betts
2 handle horizontal throw main breaker offset 7/8" left of center and 1 3/4" above two breaker columns
TB-2 (same as CR-2)
Thomas & Betts Circuit Breaker Panel
Thomas & Betts 200A two handle horizontal throw main breaker offset 7/8" left of center and 1 1/4" above two breaker columns


Go to Top

Don't see your electric panel or are not sure which interlock will work?

We have over 100 more models that are not shown here.

Email or text a picture of your panel to
